Application of Micro Stepper Motor in Small Stage Lighting

In the ever-evolving landscape of stage lighting, the micro stepper motor plays a pivotal role in delivering precise and dynamic illumination for small venues. From intimate theater productions to compact event spaces, these motors enable seamless control over light movements, ensuring captivating performances without the bulk of larger systems. This article delves into the applications of the micro stepper motor in small stage lighting, exploring its technical advantages, practical uses, and future potential. Optimized for enthusiasts, engineers, and lighting professionals, we’ll highlight how the micro stepper motor enhances efficiency and creativity in constrained environments.

Understanding the Micro Stepper Motor

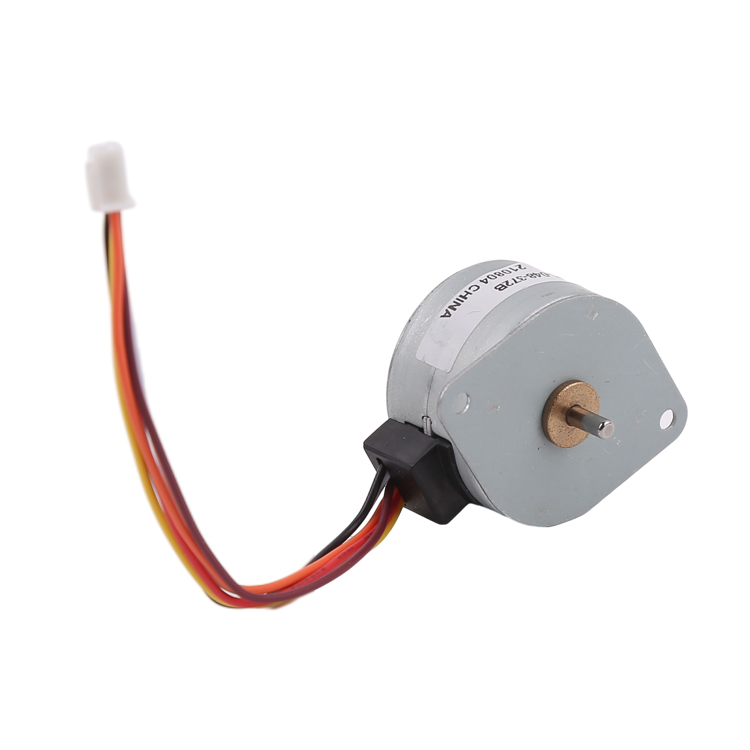

A micro stepper motor is a compact electromechanical device that converts electrical pulses into precise mechanical movements. Unlike continuous rotation motors, stepper motors advance in discrete steps, offering exceptional accuracy for positioning tasks. The “micro” designation typically refers to motors with diameters under 20mm, making them ideal for applications where space is at a premium.

These motors operate on principles of electromagnetism, where coils are energized in sequence to rotate the shaft in increments as small as 1.8 degrees per step. With microstepping technology, resolutions can reach up to 1/256 of a full step, providing sub-micron precision. Common types include hybrid, permanent magnet, and variable reluctance micro stepper motors, each suited for different torque and speed requirements.

In stage lighting, the micro stepper motor is favored for its ability to maintain position without continuous power, reducing energy consumption and heat buildup. According to industry experts, these motors are integral in automated systems, where reliability is key. For instance, in small-scale setups, a micro stepper motor can drive components like lenses or filters with minimal vibration, ensuring smooth operation during live events.

The Essentials of Small Stage Lighting Systems

Small stage lighting encompasses systems designed for venues like community halls, nightclubs, or corporate events, where portability and subtlety are essential. These setups often include LED spotlights, wash lights, and moving heads, all requiring agile control to adapt to varying performance needs.

Traditionally, manual rigs dominated, but automation has introduced efficiency. The micro stepper motor integrates seamlessly into these systems, enabling features like pan-tilt-zoom (PTZ) without oversized hardware. Market reports indicate a surge in demand for compact lighting, with the global stage lighting industry expected to grow significantly by 2030, driven by LED advancements and smart controls.

In small stages, challenges like limited space and noise sensitivity are addressed by the micro stepper motor‘s quiet operation and high torque at low speeds. This allows for intricate effects, such as synchronized light chases or focused beams, enhancing audience immersion without overwhelming the setup.

Primary Applications of Micro Stepper Motors in Small Stage Lighting

The versatility of the micro stepper motor shines in various lighting functions. One key application is in color changing mechanisms. By driving filter wheels, these motors allow rapid switching between hues, essential for mood-setting in plays or concerts. Small hybrid micro stepper motors are often used here, as they provide the necessary speed and precision for seamless transitions.

Another critical use is in focusing and zooming systems. In spotlights, a micro stepper motor adjusts lens positions linearly, sharpening beams from wide floods to narrow pins. This is particularly useful in small theaters, where quick refocusing during scenes prevents disruptions. Manufacturers like Vic-Tech motor highlight how these motors handle heat from bulbs while maintaining accuracy.

Moving head fixtures rely heavily on micro stepper motors for pan and tilt operations. These motors rotate the light head horizontally and vertically, tracking performers with fluidity. In compact designs, 42mm or 58mm micro stepper motors are common for horizontal rotation, offering robust performance in lightweight housings.

Gobo and prism effects also benefit from micro stepper motors. Gobos project patterns onto stages, and motors position them precisely for effects like stars or logos. Prisms split beams for multiplied visuals, with micro stepper motors ensuring vibration-free rotation, crucial in sound-sensitive environments like recordings or live streams.

Additionally, in shutter and iris controls, micro stepper motors enable strobe effects and beam shaping. By opening and closing apertures quickly, they create dynamic lighting without flicker, ideal for small event lighting where energy efficiency matters.

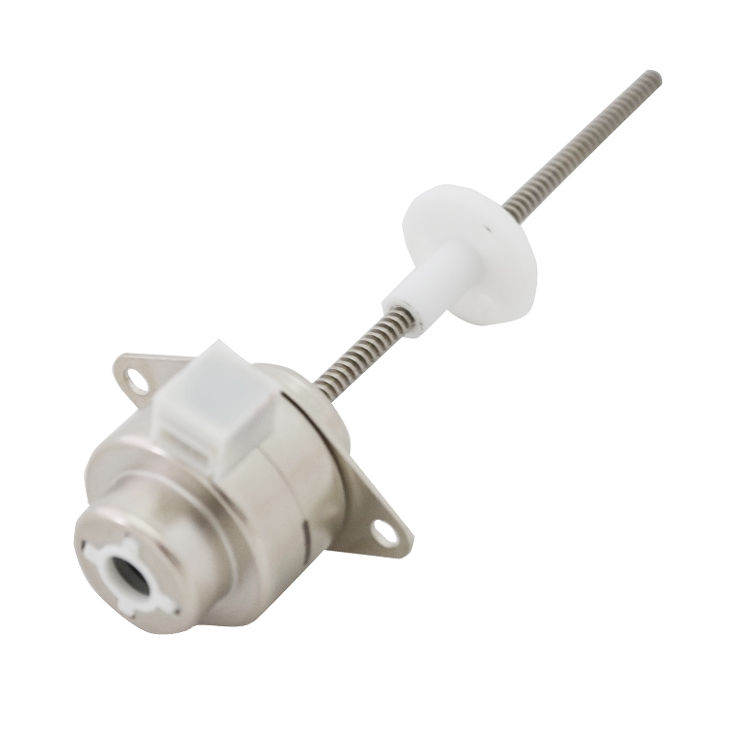

For rigging in portable systems, micro stepper motors drive linear actuators to move fixtures along tracks, facilitating sweeping effects in fashion shows or presentations. Their integration in automated trusses allows small crews to manage complex setups effortlessly.

In laser projectors for stage effects, micro stepper motors replace traditional galvanometers for cost-effective, precise beam steering, as seen in DIY projects. This application extends to small stages for creating immersive visuals like patterns or text projections.

Benefits of Incorporating Micro Stepper Motors

Adopting micro stepper motors in small stage lighting yields multiple advantages. Precision tops the list; with step accuracies down to microns, they minimize positioning errors, ensuring lights hit their marks every time. This repeatability is vital for programmed shows, reducing rehearsal times.

Energy efficiency is another boon. These motors draw power only during steps and can hold positions unpowered, cutting costs in prolonged events. Their low heat generation, especially with cooling measures, prevents overheating in enclosed fixtures.

Durability stands out, as micro stepper motors feature robust construction resistant to dust and vibrations common in stage environments. Low maintenance needs— no brushes to wear out—translate to reliability during tours or frequent setups.

Noise reduction is critical; operating in microstepping mode, they produce minimal sound, preserving audio quality in performances. Compared to servo motors, micro stepper motors offer simpler open-loop control, reducing complexity and wiring in small systems.

Cost-wise, advancements have made high-quality micro stepper motors accessible, allowing budget-conscious productions to achieve professional effects. Their compact size enables sleeker designs, fitting into tight spaces without compromising functionality.

Real-World Case Studies and Implementations

Case studies illustrate the impact of micro stepper motors. In a New York community theater, integrating these motors into LED moving heads automated focus during multi-scene plays, slashing manual adjustments and enhancing flow.

Chauvet Professional’s Rogue series employs micro stepper motors for zoom and iris, delivering crisp beams in club settings, where space is limited but effects must wow.

In Europe, festival designers use linear actuators with micro stepper motors for gobo changes, achieving faster patterns and vibrant visuals in outdoor small stages.

A DIY project on platforms like RepRap forums adapted micro stepper motors for sound-sensitive calibration devices, mirroring stage needs for quiet operation. Similarly, Arduino-based setups for ultra-light duty motors raise/lower small fixtures, proving accessibility for hobbyists.

Faradyi Motors’ applications in stage lighting showcase how micro stepper motors drive industry-specific solutions, from panning lights to robotic arms for effects.

These examples underscore how micro stepper motors transform small stage lighting into sophisticated, reliable systems.

Emerging Trends and Future Prospects

The future of micro stepper motors in small stage lighting is promising. Integration with IoT allows remote control via apps, enabling real-time adjustments from anywhere. AI-driven systems could predict lighting needs based on performance data, optimizing motor usage.

Material innovations, like advanced composites, will shrink sizes further while boosting efficiency. Hybrid micro stepper motors combining stepper precision with servo speed may emerge for faster responses in dynamic shows.

Sustainability drives eco-friendly designs, with low-power micro stepper motors aligning with green event standards. Wireless tech and 5G will enhance connectivity, allowing untethered setups in small venues.

In photolithography-inspired precision, motors could enable ultra-fine beam control for holographic effects. As virtual reality merges with live stages, micro stepper motors will synchronize physical lights with digital elements.

Wrapping Up: The Impact of Micro Stepper Motors

The micro stepper motor is indispensable for elevating small stage lighting, offering precision, efficiency, and innovation. Its applications span from basic color changes to complex automated movements, making professional effects achievable in compact spaces. For lighting designers and engineers, embracing micro stepper motor technology means unlocking new creative possibilities. Explore suppliers like Portescap or ASPINA for tailored solutions, and integrate these motors to illuminate your next project brilliantly.
